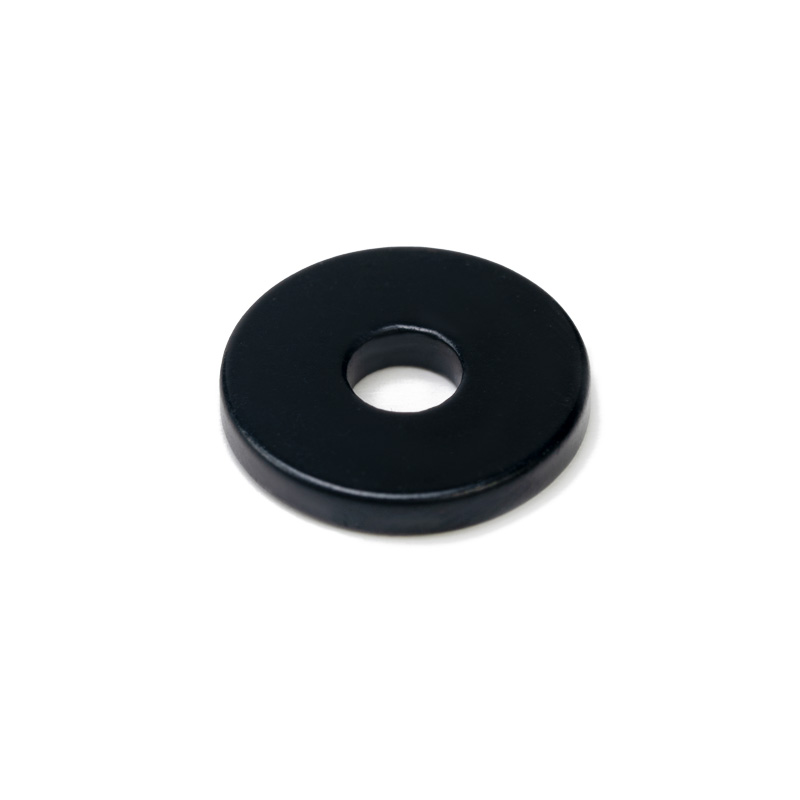

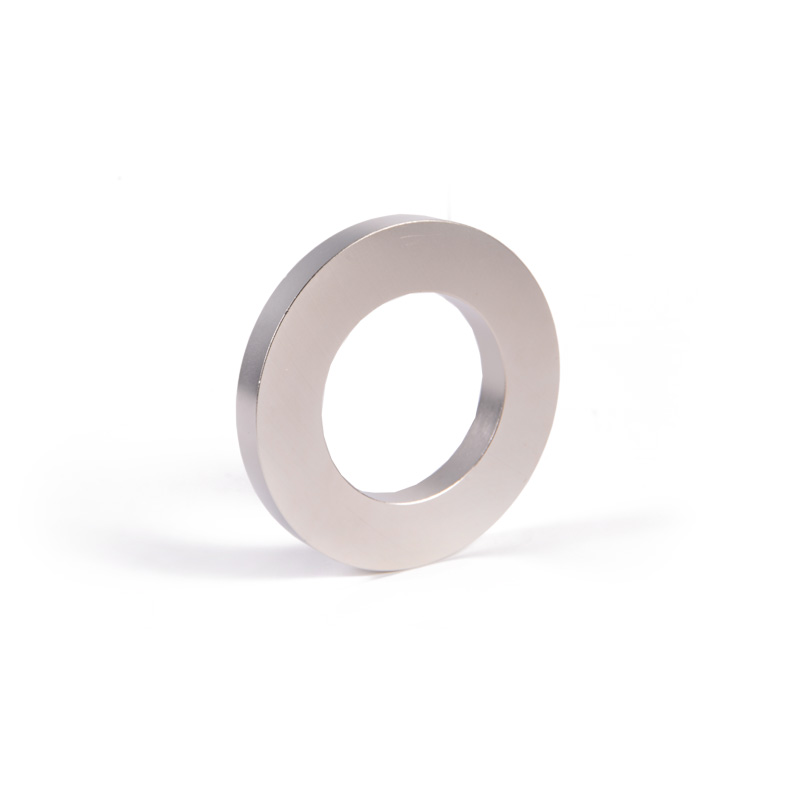

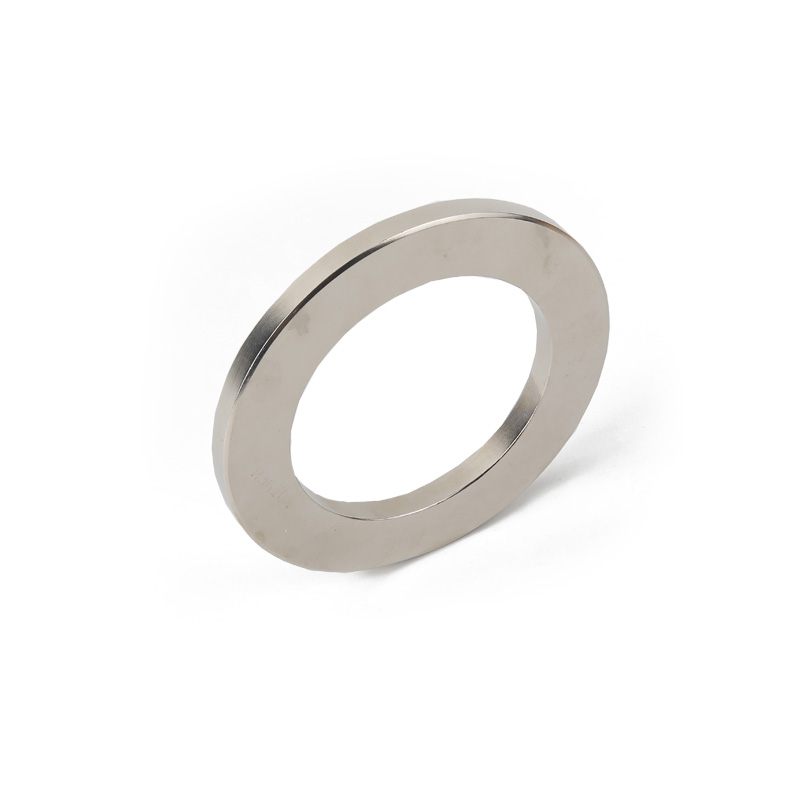

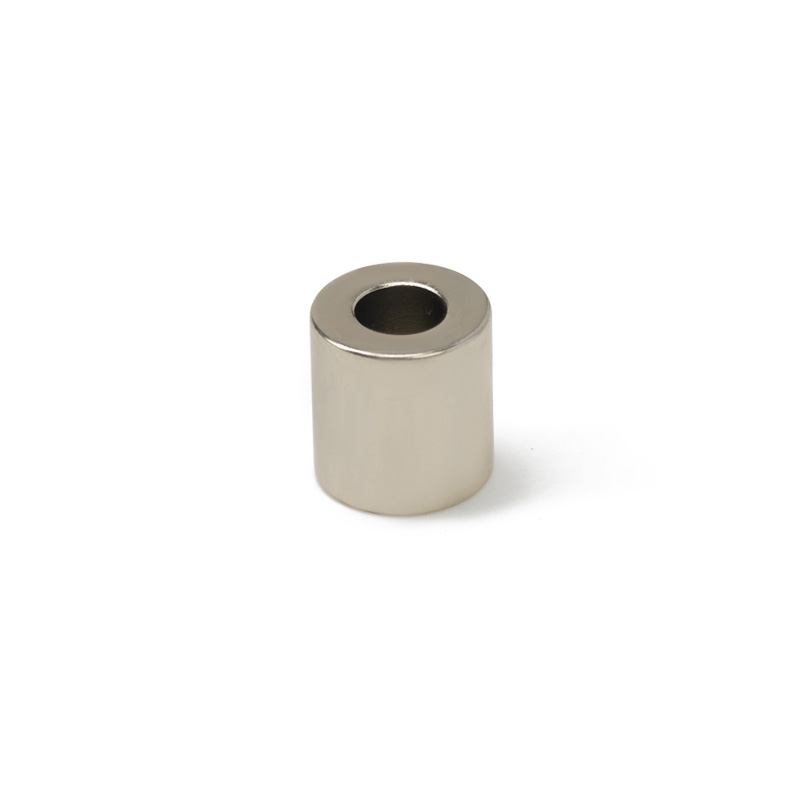

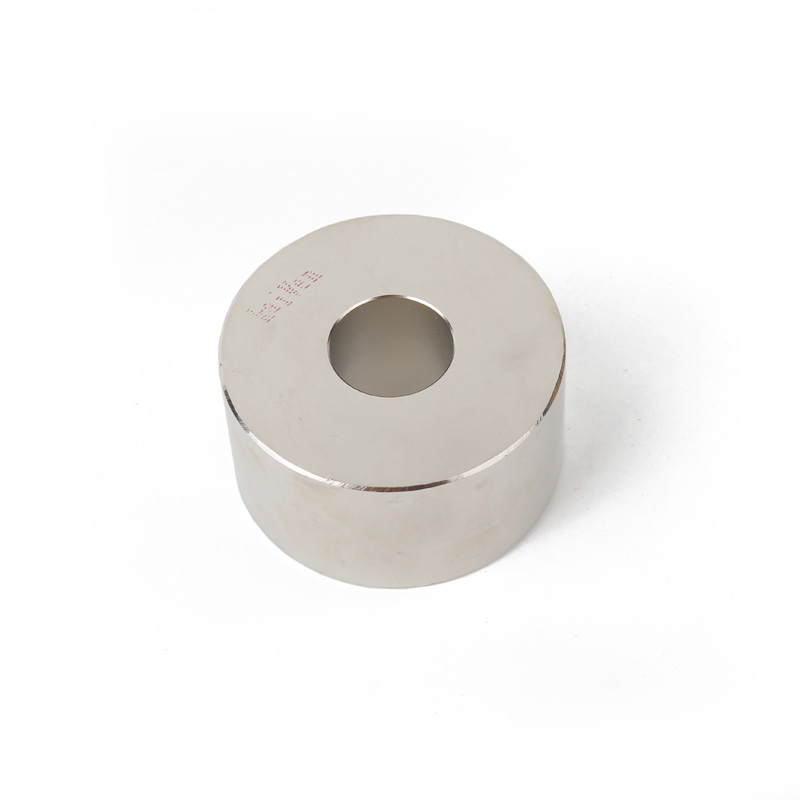

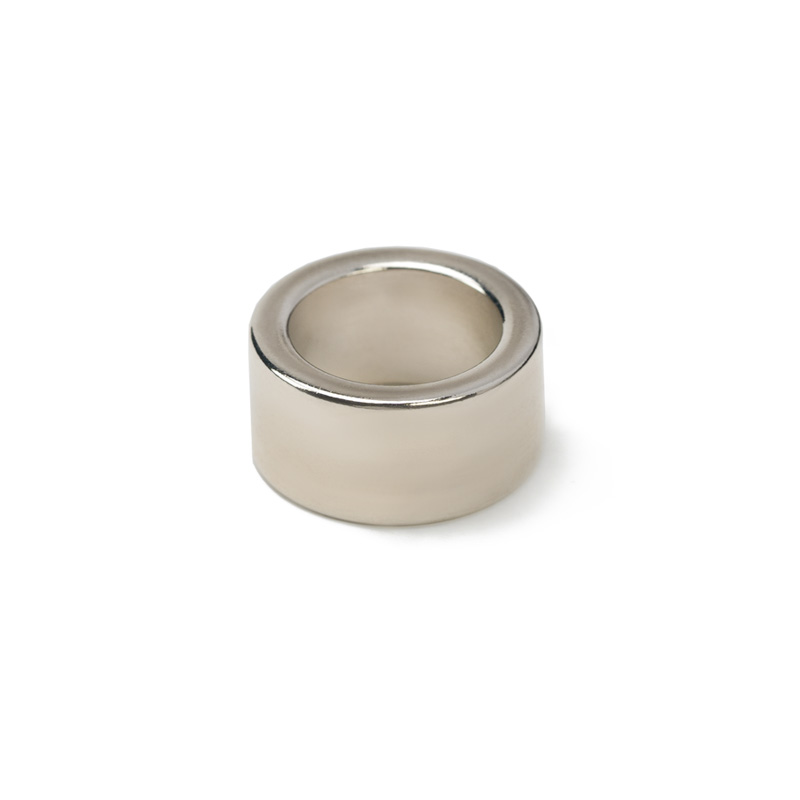

Neodymium ring magnets are made from high-performance neodymium, iron, and boron materials, known for their strong magnetic force and high energy product. As a type of permanent magnet, ring magnets feature a central hole which allows for easy integration into rotating machinery and shaft-based systems. Due to their symmetrical structure and uniform magnetic field distribution, neodymium ring magnets are widely used in motors, sensors, generators, loudspeakers, and other industrial and electronic applications.
Sintered NdFeB ring magnets are compact, lightweight, and provide excellent magnetic strength. Among all rare-earth magnets, they offer the highest energy product, making them ideal for applications that demand strong, reliable performance in limited space. Their round shape ensures a consistent and stable magnetic field.
Why choose Sintered Neodymium Ring Magnet
● Increased magnetic field density: Ring magnets have a circular shape that provides a more concentrated magnetic field, making them ideal for applications that require a strong magnetic field in a specific direction.
● Easy to assemble: Ring magnets can be stacked or placed in a specific orientation to create a more complex magnetic assembly, which makes them suitable for use in multi-magnet systems.
● Space-saving: Ring magnets take up less space than other shapes, which makes them ideal for applications where compactness is important.
● Improved stability: Ring magnets have a symmetrical shape that provides improved stability compared to other shapes, making them suitable for applications that require stability, such as motors or generators.
● Aesthetically pleasing: Ring magnets have a simple and elegant shape that can be appealing for certain applications, such as jewelry or decorative items.
NdFeB ring magnets are widely used in brushless DC motors, precision sensors, magnetic couplings, and other industrial applications. In particular, they are essential in modern green energy systems such as wind turbines and hybrid vehicles. With the increasing demand for high-efficiency, low-carbon technologies, ring magnets made of NdFeB are becoming key components in energy-saving and environmentally friendly solutions.
| Material grade | Remanence Br (T/kG) | Coercivity Hcb (kOe/kA/m) | Intrinsic Coercivity Hcj (kOe/kA/m) | Maximum Energy Product (MGOe/kJ/m3) | Dy | Tb | Remarks |
| KN35 | ≥1.18(11.8) | ≥10.8(860) | ≥12(955) | 33～36(263～287) | √ | × | Scrap Inclusion |
| KN38 | ≥1.23(12.3) | ≥10.8(860) | ≥12(955) | 36～39(287～310) | √ | × | Scrap Inclusion |
| KN40 | ≥1.26(12.6) | ≥11.0(876) | ≥12(955) | 38～41(302～326) | √ | × | Scrap Inclusion |
| KN42 | ≥1.29(12.9) | ≥11.0(876) | ≥12(955) | 40～43(318～342) | √ | × | Scrap Inclusion |
| KN45 | ≥1.33(13.3) | ≥11.0(876) | ≥12(955) | 43～46(342～366) | × | × | |
| KN48 | ≥1.37(13.7) | ≥10.8(860) | ≥12(955) | 46～49(366～390) | × | × | |
| KN50 | ≥1.39(13.9) | ≥10.5(836) | ≥12(955) | 47～51(374～406) | × | × | |
| KN52 | ≥1.42(14.2) | ≥10.0(796) | ≥11(876) | 49～53(390～422) | × | × | |
| KN55 | ≥1.46(14.6) | ≥9.0(716) | ≥11(876) | 52～56(414～446) | × | × | |
| KN35M | ≥1.18(11.8) | ≥10.8(860) | ≥14(1114) | 33～36(263～287) | √ | × | Scrap Inclusion |
| KN38M | ≥1.23(12.3) | ≥11.0(876) | ≥14(1114) | 36～39(287～310) | √ | × | Scrap Inclusion |
| KN40M | ≥1.26(12.6) | ≥11.4(910) | ≥14(1114) | 38～41(302～326) | √ | × | Scrap Inclusion |
| KN42M | ≥1.29(12.9) | ≥11.8(939) | ≥14(1114) | 40～43(318～342) | √ | × | Scrap Inclusion |
| KN45M | ≥1.33(13.3) | ≥11.8(939) | ≥14(1114) | 43～46(342～366) | √ | × | Scrap Inclusion |
| KN48M | ≥1.37(13.7) | ≥11.8(939) | ≥14(1114) | 46～49(366～390) | × | × | |
| KN50M | ≥1.39(13.9) | ≥11.5(915) | ≥14(1114) | 47～51(374～406) | × | × | |
| KN52M | ≥1.42(14.2) | ≥10.8(860) | ≥13(1035) | 49～53(390～422) | × | × | |
| KN54M | ≥1.46(14.6) | ≥10.8(860) | ≥13(1035) | 52～56(414～446) | × | × | |
| KN35H | ≥1.18(11.8) | ≥10.8(860) | ≥17(1353) | 33～36(263～287) | √ | × | |
| KN38H | ≥1.23(12.3) | ≥11.0(876) | ≥17(1353) | 36～39(287～310) | √ | × | |
| KN40H | ≥1.26(12.6) | ≥11.4(910) | ≥17(1353) | 38～41(302～326) | √ | × | |
| KN42H | ≥1.29(12.9) | ≥11.8(939) | ≥17(1353) | 40～43(318～342) | √ | × | |
| KN45H | ≥1.33(13.3) | ≥11.8(939) | ≥17(1353) | 43～46(342～366) | √ | × | |
| KN48H | ≥1.37(13.7) | ≥11.8(939) | ≥17(1353) | 46～49(366～390) | √ | × | |
| KN50H | ≥1.39(13.9) | ≥11.5(915) | ≥16(1274) | 47～51(374～406) | √ | × | |
| KN52H | ≥1.42(14.2) | ≥10.8(860) | ≥16(1274) | 49～53(390～422) | √ | × | |
| KN54H | ≥1.46(14.6) | ≥10.8(860) | ≥16(1274) | 52～56(414～446) | √ | √ | |
| KN30SH | ≥1.08(10.8) | ≥10.0(796) | ≥20(1592) | 28～31(223～247) | × | × | |
| KN33SH | ≥1.14(11.4) | ≥10.5(836) | ≥20(1592) | 31～34(247～271) | × | × | |
| KN35SH | ≥1.18(11.8) | ≥10.8(860) | ≥20(1592) | 33～36(263～287) | √ | × | |
| KN38SH | ≥1.23(12.3) | ≥11.0(876) | ≥20(1592) | 36～39(287～310) | √ | × | |
| KN40SH | ≥1.26(12.6) | ≥11.4(910) | ≥20(1592) | 38～41(302～326) | √ | × | |
| KN42SH | ≥1.29(12.9) | ≥11.8(939) | ≥20(1592) | 40～43(318～342) | √ | × | |
| KN45SH | ≥1.33(13.3) | ≥11.8(939) | ≥20(1592) | 43～46(342～366) | √ | × | |
| KN48SH | ≥1.37(13.7) | ≥11.8(939) | ≥19(1512) | 46～49(366～390) | √ | × | |
| KN50SH | ≥1.39(13.9) | ≥11.5(915) | ≥19(1512) | 47～51(374～406) | × | √ | |
| KN52SH | ≥1.42(14.2) | ≥10.8(860) | ≥19(1512) | 49～53(390～422) | × | √ | |
| KN54SH | ≥1.46(14.6) | ≥10.8(860) | ≥19(1512) | 52～56(414～446) | × | √ | |
| KN30UH | ≥1.08(10.8) | ≥10.0(796) | ≥25(1990) | 28～31(223～247) | √ | × | |
| KN33UH | ≥1.14(11.4) | ≥10.5(836) | ≥25(1990) | 31～34(247～271) | √ | × | |
| KN35UH | ≥1.18(11.8) | ≥10.8(860) | ≥25(1990) | 33～36(263～287) | √ | × | |
| KN38UH | ≥1.23(12.3) | ≥11.0(876) | ≥25(1990) | 36～39(287～310) | √ | × | |
| KN40UH | ≥1.26(12.6) | ≥11.4(910) | ≥25(1990) | 38～41(302～326) | √ | × | |
| KN42UH | ≥1.29(12.9) | ≥11.8(939) | ≥25(1990) | 40～43(318～342) | √ | × | |
| KN45UH | ≥1.33(13.3) | ≥11.8(939) | ≥24(1910) | 43～46(342～366) | √ | √ | |
| KN48UH | ≥1.37(13.7) | ≥11.8(939) | ≥24(1910) | 46～49(366～390) | √ | √ | |
| KN50UH | ≥1.39(13.9) | ≥11.5(915) | ≥24(1910) | 47～51(374～406) | √ | √ | |
| KN52UH | ≥1.42(14.2) | ≥10.8(860) | ≥24(1910) | 49～53(390～422) | √ | √ | |
| KN30EH | ≥1.08(10.8) | ≥10.0(796) | ≥30(2388) | 28～31(223～247) | √ | √ | |
| KN33EH | ≥1.13(11.3) | ≥10.5(836) | ≥30(2388) | 31～34(247～271) | √ | √ | |
| KN35EH | ≥1.17(11.7) | ≥10.8(860) | ≥30(2388) | 33～36(263～287) | √ | √ | |
| KN38EH | ≥1.22(12.2) | ≥11.0(876) | ≥30(2388) | 36～39(287～310) | √ | √ | |
| KN40EH | ≥1.25(12.5) | ≥11.0(876) | ≥29(2308) | 38～41(302～326) | √ | √ | |
| KN42EH | ≥1.28(12.8) | ≥10.0(796) | ≥29(2308) | 40～43(318～342) | √ | √ | |
| KN45EH | ≥1.33(13.3) | ≥11.8(939) | ≥29(2308) | 43～46(342～366) | √ | √ | |
| KN48EH | ≥1.37(13.7) | ≥11.8(939) | ≥29(2308) | 46～49(366～390) | √ | √ | |
| KN30TH | ≥1.08(10.8) | ≥10.0(796) | ≥35(2786) | 28～31(223～247) | √ | √ | |
| KN33TH | ≥1.13(11.3) | ≥10.5(836) | ≥35(2786) | 31～34(247～271) | √ | √ | |
| KN35TH | ≥1.17(11.7) | ≥10.8(860) | ≥35(2786) | 33～36(263～287) | √ | √ | |
| KN38TH | ≥1.22(12.2) | ≥11.0(876) | ≥34(2706) | 35～39(279～310) | √ | √ | |
| KN40TH | ≥1.25(12.5) | ≥10.5(836) | ≥34(2706) | 38～41(302～326) | √ | √ | |
| KN42TH | ≥1.28(12.8) | ≥10.0(796) | ≥34(2706) | 40～43(318～342) | √ | √ |
We will keep your information confidential!
Sintered NdFeB Permanent Magnetic Materials
Zhejiang Kaiven Magnet Co., Ltd is leading Neodymium Ring Magnet manufacturers and suppliers in China, The company's current production process of sintered NdFeB permanent magnet materials can be divided into two parts: the blank process (also known as the "front process" in the industry) and the finished product process (also known as the "post process" in the industry): the blank process is the praseodymium Neodymium metal, pure iron, ferroboron and other raw materials are used to make NdFeB blanks; the finished product process is to process NdFeB blanks by mechanical processing and surface treatment to obtain NdFeB magnets. We also OEM/ODM custom sintered NdFeB ring magnet. The specific production process flow chart is as follows:
Kaiven is committed to becoming a world-renowned supplier of permanent magnet material application solutions in the field of new generation consumer electronics and energy-saving home appliances. Welcome to visit our NdFeB ring magnet factory in China.
The company applies technologies such as casting columnar crystal growth control technology, grain refinement and micro-optimization technology, etc., and is committed to improving the consistency of powder and giving full play to the performance potential of rare earth. By improving the smelting microstructure, applying fine-grain technology, and optimizing the mixing process, etc., significantly improving the performance of NdFeB magnets.
The company has applied and improved low-oxygen magnet preparation technology and cold isostatic pressing technology, so that NdFeB magnets are in a low-oxygen state during the pressing process, and the preparation of molding blanks is continuously optimized, which effectively reduces the loss of rare earth. The application of low-temperature sintering heat treatment technology has further improved the sintering process. Adjusting the temperature to a suitable state can give full play to the performance of the formula. The representative products are high-performance N55 magnets prepared by low-oxygen technology and N38UH magnets produced by near-net molding technology.
In order to pursue the accurate precision of customer customization, the company applies high-performance ultra-thin small special-shaped permanent magnet preparation technology to carry out high-efficiency and low-loss precision machining of NdFeB blanks, breaking through the technical bottleneck of high-performance thin and small magnet processing difficulty, and Strictly control product appearance defects through intelligent image appearance automatic inspection technology to improve inspection efficiency and accuracy.
